bedra67401
Manganese Brass
Characteristics:
It is a Cu–Zn–Mn–Al–Si–Pb series copper-based multi-element alloy. The addition of Si and Mn improves the strength and wear resistance of the alloy, the addition of Al increases the yield strength of the alloy, and the addition of Pb enhances its wear resistance and machinability. The product uses β phase as the matrix and Mn–Si compound as the strengthening phase.
Typical applications:
It is widely used in valve guides, floating bearings, thrust bearings, synchronizer gear rings for the automotive industry, as well as sliding shoes, oil distribution pans, ball Hinges, cylinder blocks, bushings for the hydraulic industry.
Standardization and composition
| UNS | C67400 |
|---|---|
| EN | CuZn37Mn3Al2PbSi (CW713R) |
| JIS | / |
| GB | T67402 (HMn58-2-2-0.5) |
| Cu | 57.0–59.0% |
| Mn | 1.5–3.0% |
| Si | 0.3–1.3% |
| Al | 1.3–2.3% |
| Pb | 0.2–0.8% |
| Fe | ≤1.0% |
| Sn | ≤0.4% |
| Ni | ≤1.0% |
| Zn | Balance% |
Physical properties①
Note①：The testing temperature is 20℃. Note②：The testing temperature range is 20℃ to 300℃.
| Density(g/cm³) | 8.08 |
|---|---|
| Melting temperature(℃) | 885 |
| Electrical conductivity(%IACS) | 23 |
| Thermal conductivity(W/(m·K)) | 100 |
| Coefficient of thermal expansion(10⁻⁶/K) | 19.1 |
| Modulus of elasticity(GPa) | 110 |
Fabrication Properties
Note③：C36000 = 100% Note④：C37700 = 100%
| Cold workability | Poor |
| Hot workability | Excellent |
| Brazing | Good |
| Resistance welding | Good |
| Machinability③ | 30% |
| Forgeability ④ | 100% |
Mechanical Properties⑤
Note⑤：bedra technical standards
| Temper | Diameter(mm) | Tensile Strength(min.MPa) | Yield Strength(min.MPa) | Elongation(min.A%) | Hardness(min.HB) |
|---|---|---|---|---|---|
| R540 | 5.0 ≤ Φ ≤ 80 | 540 | 280 | 15 | 145 |
| R590 | 5.0 ≤ Φ ≤ 120 | 590 | 370 | 10 | 160 |
Dimension Tolerance and Delivery Form
Note⑥：The tolerances listed in the table are specified as all plus or all minus. When tolerances are specified as plus and minus (±), half the values given.
| Straight bar | ||||
| Diameter(mm) | Tolerance(mm) | Ovality(max.mm) | Length(max.mm) | Straightness(max.mm/m) |
| 5.0 ≤ Φ < 10 | 0.06 | 0.03 | 3600 | 0.3 |
| 10 ≤ Φ < 18 | 0.07 | 0.03 | 3600 | 0.3 |
| 18 ≤ Φ < 30 | 0.08 | 0.04 | 4000 | 0.5 |
| 30 ≤ Φ < 50 | 0.16 | 0.08 | 4000 | 0.5 |
| 50 ≤ Φ < 60 | 0.80 | 0.40 | 4000 | 1.0 |
| 60 ≤ Φ < 80 | 1.6 | 0.80 | 3000 | 1.0 |
| 80 ≤ Φ < 120 | 2.0 | 1.0 | 2500 | 5.0 |

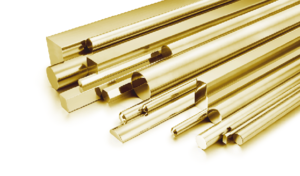

Other Delivery Forms
Tubes,Profiles
