BearMet260
Copper Nickel Tin
Characteristics：
This alloy is a spinodal decomposition-strengthened copper material. Through cold working and aging treatments, it demonstrates excellent overall performance with high strength. Free of elements such as beryllium and lead, it serves as an effective alternative to beryllium copper. In addition, it offers non-magnetic properties as well as outstanding resistance to corrosion, wear, and heat.
Typical applications:
Suitable for wear-resistant and corrosion-resistant bushings.
Standardization and composition
Note①：Silver included
| UNS | / |
|---|---|
| EN | / |
| JIS | / |
| GB | / |
| Cu① | Balance % |
| Sn | 5.5-6.5 % |
| Ni | 5.5-6.5 % |
| Pb | ≤ 0.02 % |
| Others | ≤ 1.0 % |
Physical properties②
Note②：The testing temperature is 20℃. Note③：The testing temperature range is 20℃ to 300℃.
| Density (g/cm³) | 8.96 |
|---|---|
| Metling point(℃) | 1038 |
| Electrical conductivity (%IACS) | 14 |
| Thermal conductivity (W / m x K) | 50.5 |
| Coefficient of thermal expansion ③(10-6/K) | 18.6 |
| Poisson's ratio | 0.35 |
| Modulus of elasticity (GPa) | 120 |
Fabrication Properties
Note④：C36000 = 100%
| Capacity for being cold worked | Good |
| Capacity for being hot formed | Good |
| Machinability rating④ | 40% |
Mechanical Properties ⑤
Note⑤: bedra technical standards
| Temper | Diameter (mm) | Tensile Strength (MPa min.) | Yield Strength (MPa min.) | Elongation (A% min.) | Hardness (HV min.) |
|---|---|---|---|---|---|
| TX00 | 40≤Φ≤70 | 720 | 600 | 8 | 220 |
Dimension Tolerance and Delivery Form
Note⑥：The tolerances listed in the table are specified as all plus or all minus. When tolerances are specified as plus and minus (±), half the values given.

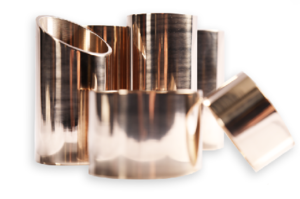

| Straight tube | |||||
| Outer Diameter OD(mm) | Wall thickness (mm) | OD tolerance⑥ (mm) | Wall thickness tolerance⑥ (%) | Length (mm max.) | Straightness(mm/m max) |
| 40≤Φ≤70 | 3.0≤δ≤5.0 | 0.4 | 20 | 2500 | 2.0 |
Other Delivery Forms
Rods and bars
