PlugMax22
Copper Nickel Tin
Characteristics:
It is a Cu-Ni-Sn alloy strengthened by spinodal hardening. It achieves superior mechanical and physical properties through a multi-step manufacturing process. It offers excellent electrical conductivity, outstanding corrosion resistance, and effective electromagnetic shielding. Its machinability is excellent, comparable to or exceeding that of C17300 (CuBe2Pb). Additionally, it is free of beryllium, lead, and cadmium, and complies with REACH and RoHS regulations.
Typical applications:
It is an ideal substitute for beryllium copper alloys, such as CuBe2 (C17200) and CuBe2Pb (C17300). It is suitable for applications including testing probes, Pogo Pins, coaxial connectors, and electrical spring contacts. Additionally, it can also be used for micro-components in the watch industry.
Standardization and composition
Note①：Including Silver
| UNS | C72670 |
|---|---|
| Cu① | balance |
| Ni | 6.0-8.0% |
| Sn | 4.0-6.0% |
| Others | ≤ 0.50% |
Physical properties②
Note②：The testing temperature is 20℃. Note③：The testing temperature range is 20℃ to 300℃.
| Density (g/cm³) | 8.8 |
|---|---|
| Metling temperature (℃) | 960 |
| Electrical conductivity (%IACS) | 13 |
| Thermal conductivity (W / m x K) | 55 |
| Coefficient of thermal expansion③ (10-6/K) | 17.2 |
| Modulus of elasticity (GPa) | 115 |
Fabrication Properties
Note④：C36000 = 100%
| Capacity for being cold worked | Good |
| Capacity for being hot formed | Poor |
| Brazing | Good |
| Resistance welding | Good |
| Machinability rating④ | 80% |
Mechanical Properties⑤
Note⑤：bedra technical standards
| Diameter (mm) | Temper | Tensile Strength (MPa min.) | Yield Strength (MPa min.) | Elongation (% min.) | Hardness (HV) |
|---|---|---|---|---|---|
| 2.0 ≤ Ф < 10 | TD04 | 730 | 630 | 1 | 230 |
| 2.0 ≤ Ф < 10 | TH04 | 950 | 900 | 2 | 290 |
Delivery Forms

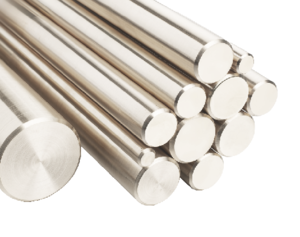

Straight bars and Wires
